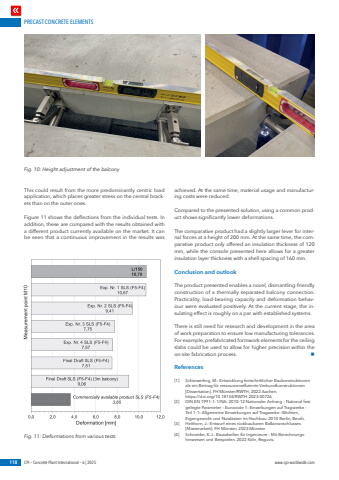

PRECAST CONCRETE ELEMENTS118 CPI %u2013 Concrete Plant International %u2013 6 | 2025 www.cpi-worldwide.comThis could result from the more predominantly centric load application, which places greater stress on the central brackets than on the outer ones.Figure 11 shows the deflections from the individual tests. In addition, these are compared with the results obtained with a different product currently available on the market. It can be seen that a continuous improvement in the results was achieved. At the same time, material usage and manufacturing costs were reduced.Compared to the presented solution, using a common product shows significantly lower deformations.The comparative product had a slightly larger lever for internal forces at a height of 200 mm. At the same time, the comparative product only offered an insulation thickness of 120 mm, while the console presented here allows for a greater insulation layer thickness with a shell spacing of 160 mm.Conclusion and outlookThe product presented enables a novel, dismantling-friendly construction of a thermally separated balcony connection. Practicality, load-bearing capacity and deformation behaviour were evaluated positively. At the current stage, the insulating effect is roughly on a par with established systems.There is still need for research and development in the area of work preparation to ensure low manufacturing tolerances. For example, prefabricated formwork elements for the ceiling slabs could be used to allow for higher precision within the on-site fabrication process. nReferences[1] Schiewerling, M.: Entwicklung fortschrittlicher Baukonstruktionen als ein Beitrag f%u00fcr ressourceneffiziente Verbundkonstruktionen [Dissertation]. FH M%u00fcnster/RWTH, 2022 Aachen. https://doi.org/10.18154/RWTH-2023-00726[2] DIN EN 1991%u20131-1/NA: 2010-12 Nationaler Anhang %u2013 National festgelegte Parameter %u2013 Eurocode 1: Einwirkungen auf Tragwerke %u2013 Teil 1-1: Allgemeine Einwirkungen auf Tragwerke %u2013Wichten, Eigengewicht und Nutzlasten im Hochbau. 2010 Berlin, Beuth.[3] Heithorn, J.: Entwurf eines r%u00fcckbaubaren Balkonanschlusses [Masterarbeit]. FH M%u00fcnster, 2023 M%u00fcnster[4] Schneider, K.J.: Bautabellen f%u00fcr Ingenieure %u2013 Mit Berechnungshinweisen und Beispielen. 2022 K%u00f6ln, Reguvis. Fig. 11: Deformations from various testsFig. 10: Height adjustment of the balcony
