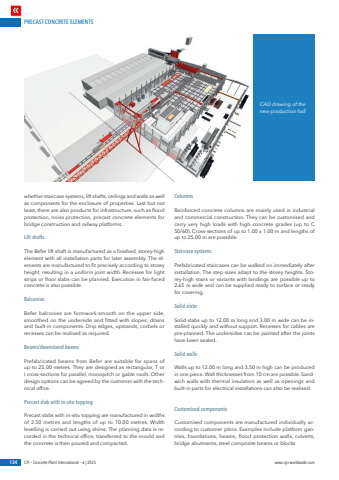

PRECAST CONCRETE ELEMENTS134 CPI %u2013 Concrete Plant International %u2013 6 | 2025 www.cpi-worldwide.comwhether staircase systems, lift shafts, ceilings and walls as well as components for the enclosure of properties. Last but not least, there are also products for infrastructure, such as flood protection, noise protection, precast concrete elements for bridge construction and railway platforms.Lift shaftsThe Befer lift shaft is manufactured as a finished, storey-high element with all installation parts for later assembly. The elements are manufactured to fit precisely according to storey height, resulting in a uniform joint width. Recesses for light strips or floor slabs can be planned. Execution in fair-faced concrete is also possible.BalconiesBefer balconies are formwork-smooth on the upper side, smoothed on the underside and fitted with slopes, drains and built-in components. Drip edges, upstands, corbels or recesses can be realised as required.Beams/downstand beamsPrefabricated beams from Befer are suitable for spans of up to 25.00 metres. They are designed as rectangular, T or I cross-sections for parallel, monopitch or gable roofs. Other design options can be agreed by the customer with the technical office.Precast slab with in-situ toppingPrecast slabs with in-situ topping are manufactured in widths of 2.50 metres and lengths of up to 10.00 metres. Width levelling is carried out using shims. The planning data is recorded in the technical office, transferred to the mould and the concrete is then poured and compacted.ColumnsReinforced concrete columns are mainly used in industrial and commercial construction. They can be customised and carry very high loads with high concrete grades (up to C 50/60). Cross-sections of up to 1.00 x 1.00 m and lengths of up to 25.00 m are possible.Staircase systemsPrefabricated staircases can be walked on immediately after installation. The step sizes adapt to the storey heights. Storey-high stairs or variants with landings are possible up to 2.65 m wide and can be supplied ready to surface or ready for covering.Solid slabsSolid slabs up to 12.00 m long and 3.00 m wide can be installed quickly and without support. Recesses for cables are pre-planned. The undersides can be painted after the joints have been sealed.Solid wallsWalls up to 12.00 m long and 3.50 m high can be produced in one piece. Wall thicknesses from 10 cm are possible. Sandwich walls with thermal insulation as well as openings and built-in parts for electrical installations can also be realised.Customised componentsCustomised components are manufactured individually according to customer plans. Examples include platform gantries, foundations, beams, flood protection walls, culverts, bridge abutments, steel composite beams or blocksCAD drawing of the new production hall
