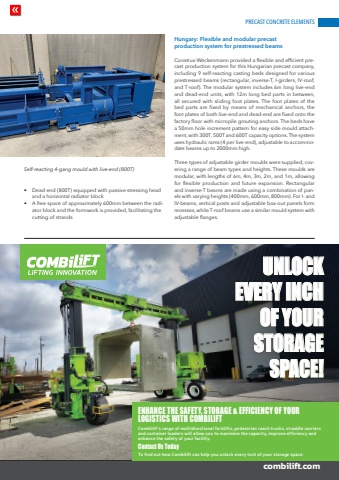

PRECAST CONCRETE ELEMENTSwww.cpi-worldwide.com CPI %u2013 Concrete Plant International %u2013 3 | 2025 101%u2022 Dead-end (800T) equipped with passive stressing head and a horizontal radiator block%u2022 A free space of approximately 600mm between the radiator block and the formwork is provided, facilitating the cutting of strandsHungary: Flexible and modular precast production system for prestressed beamsConstrux-Weckenmann provided a flexible and efficient precast production system for this Hungarian precast company, including 9 self-reacting casting beds designed for various prestressed beams (rectangular, inverse-T, I-girders, IV-roof, and T-roof). The modular system includes 6m long live-end and dead-end units, with 12m long bed parts in between, all secured with sliding foot plates. The foot plates of the bed parts are fixed by means of mechanical anchors, the foot plates of both live-end and dead-end are fixed onto the factory floor with micropile grouting anchors. The beds have a 50mm hole increment pattern for easy side mould attachment, with 300T, 500T and 600T capacity options. The system uses hydraulic rams (4 per live-end), adjustable to accommodate beams up to 2000mm high.Three types of adjustable girder moulds were supplied, covering a range of beam types and heights. These moulds are modular, with lengths of 6m, 4m, 3m, 2m, and 1m, allowing for flexible production and future expansion. Rectangular and inverse-T beams are made using a combination of panels with varying heights (400mm, 600mm, 800mm). For I- and IV-beams, vertical posts and adjustable box-out panels form recesses, while T-roof beams use a similar mould system with adjustable flanges.Self-reacting 4-gang mould with live-end (800T)25ENHANCE THE SAFETY, STORAGE & EFFICIENCY OF YOUR LOGISTICS WITH COMBILIFTCombilift%u2019s range of multidirectional forklifts, pedestrian reach trucks, straddle carriers and container loaders will allow you to maximize the capacity, improve efficiency and enhance the safety of your facility.Contact Us TodayTo find out how Combilift can help you unlock every inch of your storage space.UNLOCK EVERY INCH OF YOUR STORAGE SPACE!combilift.com
