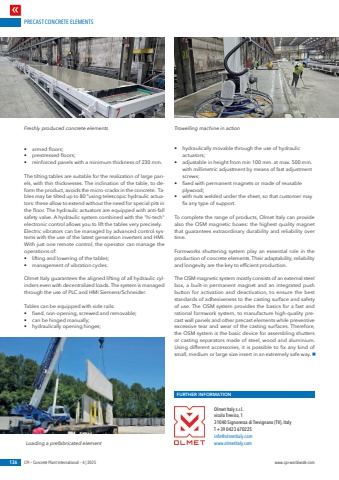

PRECAST CONCRETE ELEMENTS136 CPI %u2013 Concrete Plant International %u2013 4 | 2025 www.cpi-worldwide.com Loading a prefabricated element%u2022 armed floors; %u2022 prestressed floors; %u2022 reinforced panels with a minimum thickness of 230 mm. The tilting tables are suitable for the realization of large panels, with thin thicknesses. The inclination of the table, to deform the product, avoids the micro-cracks in the concrete. Tables may be tilted up to 80 %u00b0using telescopic hydraulic actuators: these allow to extend without the need for special pits in the floor. The hydraulic actuators are equipped with anti-fall safety valve. A hydraulic system combined with the \electronic control allows you to lift the tables very precisely.Electric vibrators can be managed by advanced control systems with the use of the latest generation inverters and HMI. With just one remote control, the operator can manage the operations of:%u2022 lifting and lowering of the tables;%u2022 management of vibration cycles.Olmet Italy guarantees the aligned lifting of all hydraulic cylinders even with decentralized loads. The system is managed through the use of PLC and HMI Siemens/Schneider. Tables can be equipped with side rails:%u2022 fixed, non-opening, screwed and removable; %u2022 can be hinged manually;%u2022 hydraulically opening hinges; %u2022 hydraulically movable through the use of hydraulic actuators; %u2022 adjustable in height from min 100 mm. at max. 500 mm. with millimetric adjustment by means of fast adjustment screws; %u2022 fixed with permanent magnets or made of reusable plywood;%u2022 with nuts welded under the sheet, so that customer may fix any type of support. To complete the range of products, Olmet Italy can provide also the OSM magnetic boxes: the highest quality magnet that guarantees extraordinary durability and reliability over time.Formworks shuttering system play an essential role in the production of concrete elements. Their adaptability, reliability and longevity are the key to efficient production. The OSM magnetic system mostly consists of an external steel box, a built-in permanent magnet and an integrated push button for activation and deactivation, to ensure the best standards of adhesiveness to the casting surface and safety of use. The OSM system provides the basics for a fast and rational formwork system, to manufacture high-quality precast wall panels and other precast elements while preventive excessive tear and wear of the casting surfaces. Therefore, the OSM system is the basic device for assembling shutters or casting separators made of steel, wood and aluminium. Using different accessories, it is possible to fix any kind of small, medium or large size insert in an extremely safe way. nFURTHER INFORMATIONOlmet Italy s.r.l.vicolo Treviso, 131040 Signoressa di Trevignano (TV), ItalyT +39 0423 670225info@olmetitaly.comwww.olmetitaly.comFreshly produced concrete elements Trowelling machine in action
