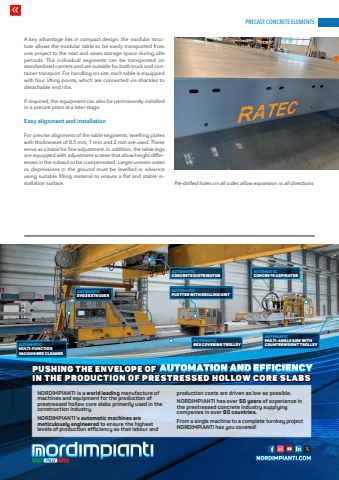

PRECAST CONCRETE ELEMENTSwww.cpi-worldwide.com CPI %u2013 Concrete Plant International %u2013 2 | 2026 141A key advantage lies in compact design: the modular structure allows the modular table to be easily transported from one project to the next and saves storage space during idle periods. The individual segments can be transported on standardized carriers and are suitable for both truck and container transport. For handling on site, each table is equipped with four lifting points, which are connected via shackles to detachable end ribs.If required, the equipment can also be permanently installed in a precast plant at a later stage.Easy alignment and installationFor precise alignment of the table segments, levelling plates with thicknesses of 0.5 mm, 1 mm and 2 mm are used. These serve as a basis for fine adjustment. In addition, the table legs are equipped with adjustment screws that allow height differences in the subsoil to be compensated. Larger uneven areas or depressions in the ground must be levelled in advance using suitable filling material to ensure a flat and stable installation surface. Pre-drilled holes on all sides allow expansion in all directionsadv | webnue.itNORDIMPIANTI is a world leading manufacture of machines and equipment for the production of prestressed hollow core slabs primarily used in the construction industry.NORDIMPIANTI%u2019s automatic machines are meticulously engineered to ensure the highest levels of production efficiency so that labour and production costs are driven as low as possible. NORDIMPIANTI has over 50 years of experience in the prestressed concrete industry supplying companies in over 60 countries. From a single machine to a complete turnkey project NORDIMPIANTI has you covered!PUSHING THE ENVELOPE OFIN THE PRODUCTION OF PRESTRESSED HOLLOW CORE SLABSAUTOMATICCONCRETE ASPIRATORAUTOMATICPLOTTER WITH DRILLING UNITAUTOMATICEVO2 EXTRUDERAUTOMATICMULTI-FUNCTIONVACUUM BED CLEANERAUTOMATICMULTI-ANGLE SAW WITHCOUNTERWEIGHT TROLLEYAUTOMATICBED COVERING TROLLEYAUTOMATICCONCRETE DISTRIBUTOR
