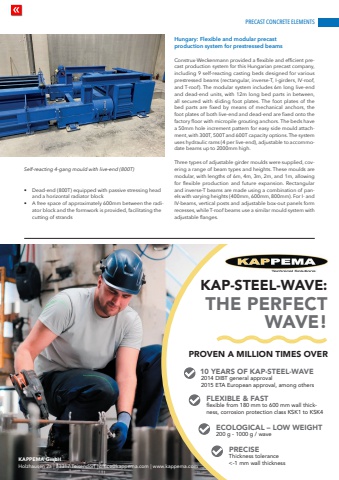

PRECAST CONCRETE ELEMENTSwww.cpi-worldwide.com CPI %u2013 Concrete Plant International %u2013 3 | 2025 111%u2022 Dead-end (800T) equipped with passive stressing head and a horizontal radiator block%u2022 A free space of approximately 600mm between the radiator block and the formwork is provided, facilitating the cutting of strandsHungary: Flexible and modular precast production system for prestressed beamsConstrux-Weckenmann provided a flexible and efficient precast production system for this Hungarian precast company, including 9 self-reacting casting beds designed for various prestressed beams (rectangular, inverse-T, I-girders, IV-roof, and T-roof). The modular system includes 6m long live-end and dead-end units, with 12m long bed parts in between, all secured with sliding foot plates. The foot plates of the bed parts are fixed by means of mechanical anchors, the foot plates of both live-end and dead-end are fixed onto the factory floor with micropile grouting anchors. The beds have a 50mm hole increment pattern for easy side mould attachment, with 300T, 500T and 600T capacity options. The system uses hydraulic rams (4 per live-end), adjustable to accommodate beams up to 2000mm high.Three types of adjustable girder moulds were supplied, covering a range of beam types and heights. These moulds are modular, with lengths of 6m, 4m, 3m, 2m, and 1m, allowing for flexible production and future expansion. Rectangular and inverse-T beams are made using a combination of panels with varying heights (400mm, 600mm, 800mm). For I- and IV-beams, vertical posts and adjustable box-out panels form recesses, while T-roof beams use a similar mould system with adjustable flanges.Self-reacting 4-gang mould with live-end (800T)KAP-STEEL-WAVE:THE PERFECT WAVE!10 YEARS OF KAP-STEEL-WAVEFLEXIBLE & FASTECOLOGICAL %u2013 LOW WEIGHTPRECISEfl exible from 180 mm to 600 mm wall thickness, corrosion protection class KSK1 to KSK42014 DIBT general approval2015 ETA European approval, among others200 g - 1000 g / waveThickness tolerance <-1 mm wall thicknessPROVEN A MILLION TIMES OVERKAPPEMA GmbHHolzhausen 2a | 83317 Teisendorf | offi ce@kappema.com | www.kappema.com
