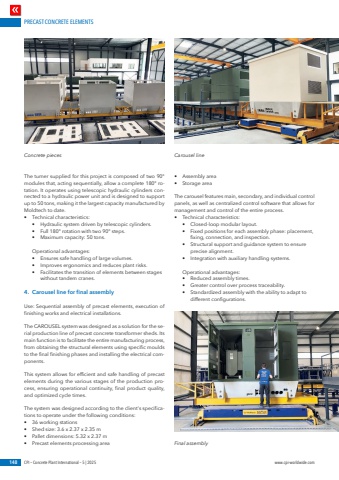

PRECAST CONCRETE ELEMENTS148 CPI %u2013 Concrete Plant International %u2013 5 | 2025 www.cpi-worldwide.comThe turner supplied for this project is composed of two 90%u00b0 modules that, acting sequentially, allow a complete 180%u00b0 rotation. It operates using telescopic hydraulic cylinders connected to a hydraulic power unit and is designed to support up to 50 tons, making it the largest capacity manufactured by Moldtech to date.%u2022 Technical characteristics:%u2022 Hydraulic system driven by telescopic cylinders.%u2022 Full 180%u00b0 rotation with two 90%u00b0 steps.%u2022 Maximum capacity: 50 tons.Operational advantages:%u2022 Ensures safe handling of large volumes.%u2022 Improves ergonomics and reduces plant risks.%u2022 Facilitates the transition of elements between stages without tandem cranes. 4. Carousel line for final assemblyUse: Sequential assembly of precast elements, execution of finishing works and electrical installations.The CAROUSEL system was designed as a solution for the serial production line of precast concrete transformer sheds. Its main function is to facilitate the entire manufacturing process, from obtaining the structural elements using specific moulds to the final finishing phases and installing the electrical components.This system allows for efficient and safe handling of precast elements during the various stages of the production process, ensuring operational continuity, final product quality, and optimized cycle times.The system was designed according to the client's specifications to operate under the following conditions:%u2022 36 working stations%u2022 Shed size: 3.6 x 2.37 x 2.35 m%u2022 Pallet dimensions: 5.32 x 2.37 m%u2022 Precast elements processing area%u2022 Assembly area%u2022 Storage areaThe carousel features main, secondary, and individual control panels, as well as centralized control software that allows for management and control of the entire process.%u2022 Technical characteristics:%u2022 Closed-loop modular layout.%u2022 Fixed positions for each assembly phase: placement, fixing, connection, and inspection.%u2022 Structural support and guidance system to ensure precise alignment.%u2022 Integration with auxiliary handling systems.Operational advantages:%u2022 Reduced assembly times.%u2022 Greater control over process traceability.%u2022 Standardized assembly with the ability to adapt to different configurations. Concrete pieces Carousel lineFinal assembly
