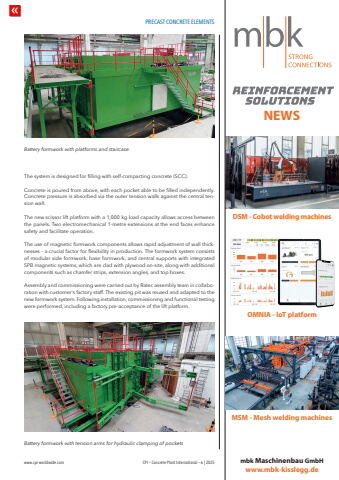

PRECAST CONCRETE ELEMENTSwww.cpi-worldwide.com CPI %u2013 Concrete Plant International %u2013 6 | 2025The system is designed for filling with self-compacting concrete (SCC).Concrete is poured from above, with each pocket able to be filled independently. Concrete pressure is absorbed via the outer tension walls against the central tension wall.The new scissor lift platform with a 1,000 kg load capacity allows access between the panels. Two electromechanical 1-metre extensions at the end faces enhance safety and facilitate operation.The use of magnetic formwork components allows rapid adjustment of wall thicknesses %u2013 a crucial factor for flexibility in production. The formwork system consists of modular side formwork, base formwork, and central supports with integrated SPB magnetic systems, which are clad with plywood on-site, along with additional components such as chamfer strips, extension angles, and top boxes.Assembly and commissioning were carried out by Ratec assembly team in collaboration with customer%u2019s factory staff. The existing pit was reused and adapted to the new formwork system. Following installation, commissioning and functional testing were performed, including a factory pre-acceptance of the lift platform.Battery formwork with platforms and staircaseBattery formwork with tension arms for hydraulic clamping of pocketswww.mbk-kisslegg.de mbk Maschinenbau GmbHDSM - Cobot welding machines OMNIA - loT platformMSM - Mesh welding machinesNEWS
