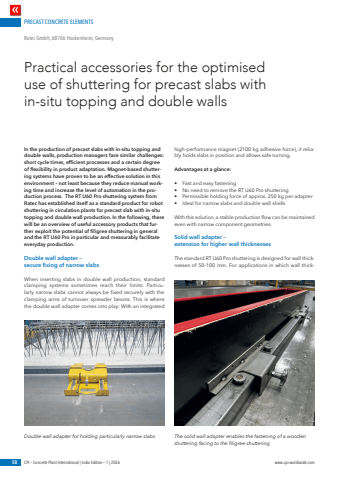

PRECAST CONCRETE ELEMENTS58 CPI %u2013 Concrete Plant International | India Edition %u2013 1 | 2026 www.cpi-worldwide.comIn the production of precast slabs with in-situ topping and double walls, production managers face similar challenges: short cycle times, efficient processes and a certain degree of flexibility in product adaptation. Magnet-based shuttering systems have proven to be an effective solution in this environment %u2013 not least because they reduce manual working time and increase the level of automation in the production process. The RT U60 Pro shuttering system from Ratec has established itself as a standard product for robot shuttering in circulation plants for precast slab with in-situ topping and double wall production. In the following, there will be an overview of useful accessory products that further exploit the potential of filigree shuttering in general and the RT U60 Pro in particular and measurably facilitate everyday production.Double wall adapter %u2013 secure fixing of narrow slabsWhen inserting slabs in double wall production, standard clamping systems sometimes reach their limits: Particularly narrow slabs cannot always be fixed securely with the clamping arms of turnover spreader beams. This is where the double wall adapter comes into play: With an integrated high-performance magnet (2100 kg adhesive force), it reliably holds slabs in position and allows safe turning.Advantages at a glance:%u2022 Fast and easy fastening %u2022 No need to remove the RT U60 Pro shuttering%u2022 Permissible holding force of approx. 250 kg per adapter%u2022 Ideal for narrow slabs and double wall shellsWith this solution, a stable production flow can be maintained even with narrow component geometries. Solid wall adapter %u2013 extension for higher wall thicknessesThe standard RT U60 Pro shuttering is designed for wall thicknesses of 50-100 mm. For applications in which wall thickPractical accessories for the optimised use of shuttering for precast slabs with in-situ topping and double walls Ratec GmbH, 68766 Hockenheim, GermanyDouble wall adapter for holding particularly narrow slabs The solid wall adapter enables the fastening of a wooden shuttering facing to the filigree shuttering
