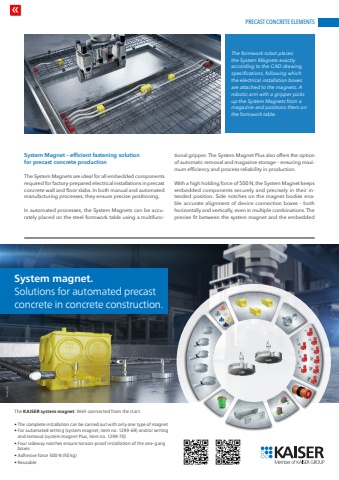

PRECAST CONCRETE ELEMENTSwww.cpi-worldwide.com CPI %u2013 Concrete Plant International %u2013 5 | 2025 183System Magnet %u2013 efficient fastening solution for precast concrete productionThe System Magnets are ideal for all embedded components required for factory-prepared electrical installations in precast concrete wall and floor slabs. In both manual and automated manufacturing processes, they ensure precise positioning.In automated processes, the System Magnets can be accurately placed on the steel formwork table using a multifunctional gripper. The System Magnet Plus also offers the option of automatic removal and magazine storage %u2013 ensuring maximum efficiency and process reliability in production.With a high holding force of 500 N, the System Magnet keeps embedded components securely and precisely in their intended position. Side notches on the magnet bodies enable accurate alignment of device connection boxes %u2013 both horizontally and vertically, even in multiple combinations. The precise fit between the system magnet and the embedded The formwork robot places the System Magnets exactly according to the CAD drawing specifications, following which the electrical installation boxes are attached to the magnets. A robotic arm with a gripper picks up the System Magnets from a magazine and positions them on the formwork table.KAI0925CPISystem magnet. Solutions for automated precastconcrete in concrete construction.The KAISER system magnet. Well-connected from the start.%u2022 The complete installation can be carried out with only one type of magnet%u2022 For automated setting (system magnet, item no. 1299-69) and/or setting and removal (system magnet Plus, item no. 1299-70)%u2022 Four sideway notches ensure torsion-proof installation of the one-gang boxes%u2022 Adhesive force 500 N (50 kg)%u2022 Reusable
