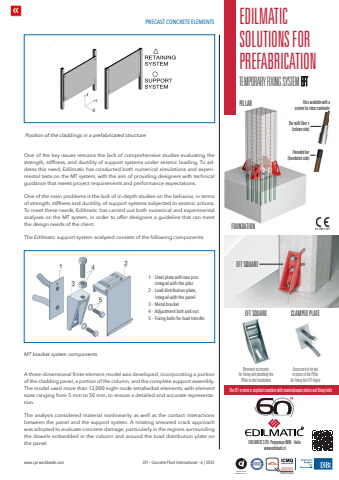

PRECAST CONCRETE ELEMENTSwww.cpi-worldwide.com CPI %u2013 Concrete Plant International %u2013 6 | 2025One of the key issues remains the lack of comprehensive studies evaluating the strength, stiffness, and ductility of support systems under seismic loading. To address this need, Edilmatic has conducted both numerical simulations and experimental tests on the MT system, with the aim of providing designers with technical guidance that meets project requirements and performance expectations.One of the main problems is the lack of in-depth studies on the behavior, in terms of strength, stiffness and ductility, of support systems subjected to seismic actions. To meet these needs, Edilmatic has carried out both numerical and experimental analyses on the MT system, in order to offer designers a guideline that can meet the design needs of the client.The Edilmatic support system analyzed consists of the following components:A three-dimensional finite element model was developed, incorporating a portion of the cladding panel, a portion of the column, and the complete support assembly. The model used more than 12,000 eight-node tetrahedral elements, with element sizes ranging from 5 mm to 50 mm, to ensure a detailed and accurate representation.The analysis considered material nonlinearity as well as the contact interactions between the panel and the support system. A rotating smeared crack approach was adopted to evaluate concrete damage, particularly in the regions surrounding the dowels embedded in the column and around the load distribution plate on the panel.MT bracket system components Position of the claddings in a prefabricated structure1 - Steel plate with two pins integral with the pilar2 - Load distribution plate, integral with the panel3 - Metal bracket4 - Adjustment bolt and nut5 - Fixing bolts for load transferRecovery accessory for fixing and plumbing the Pillar in the FoundationAccessory to be put in place in the Pillar for fixing the EFT AngleEFT SQUAREEFT SQUAREThe EFT system is supplied complete with counterplaques plates and fixing boltsCLAMPED PLATEPILLAR Also available with a system for rebar continuity.Bar with Sleeve (column side)FOUNDATIONe e)Threaded bar (foundation side)EDILMATIC SOLUTIONS FOR PREFABRICATIONTEMPORARY FIXING SYSTEM EFTACCREDITATOINSERTI QUALITA%u2019REDILMATIC S.P.A. Pegognaga (MN) - Italia www.edilmatic.itANNIVERSARY
