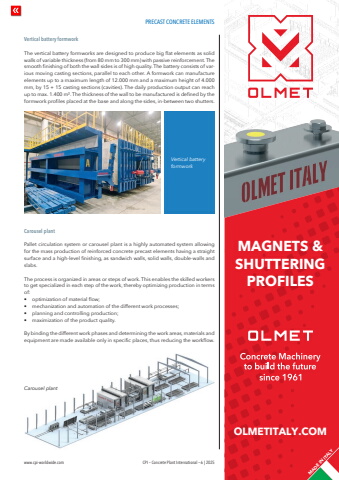

PRECAST CONCRETE ELEMENTSwww.cpi-worldwide.com CPI %u2013 Concrete Plant International %u2013 6 | 2025Vertical battery formworkThe vertical battery formworks are designed to produce big flat elements as solid walls of variable thickness (from 80 mm to 300 mm) with passive reinforcement. The smooth finishing of both the wall sides is of high quality. The battery consists of various moving casting sections, parallel to each other. A formwork can manufacture elements up to a maximum length of 12.000 mm and a maximum height of 4.000 mm, by 15 + 15 casting sections (cavities). The daily production output can reach up to max. 1.400 m%u00b2. The thickness of the wall to be manufactured is defined by the formwork profiles placed at the base and along the sides, in-between two shutters.Carousel plantPallet circulation system or carousel plant is a highly automated system allowing for the mass production of reinforced concrete precast elements having a straight surface and a high-level finishing, as sandwich walls, solid walls, double-walls and slabs.The process is organized in areas or steps of work. This enables the skilled workers to get specialized in each step of the work, thereby optimizing production in terms of:%u2022 optimization of material flow;%u2022 mechanization and automation of the different work processes;%u2022 planning and controlling production;%u2022 maximization of the product quality.By binding the different work phases and determining the work areas, materials and equipment are made available only in specific places, thus reducing the workflow.Carousel plantVertical battery formworkOLMETITALY.COMMAGNETS &SHUTTERINGPROFILESMADE IN ITALY
