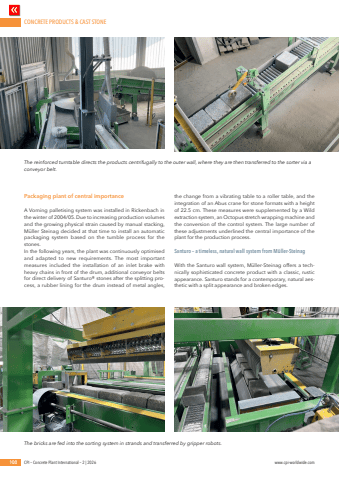

CONCRETE PRODUCTS & CAST STONE100 CPI %u2013 Concrete Plant International %u2013 2 | 2026 www.cpi-worldwide.comPackaging plant of central importanceA Vorning palletising system was installed in Rickenbach in the winter of 2004/05. Due to increasing production volumes and the growing physical strain caused by manual stacking, M%u00fcller Steinag decided at that time to install an automatic packaging system based on the tumble process for the stones.In the following years, the plant was continuously optimised and adapted to new requirements. The most important measures included the installation of an inlet brake with heavy chains in front of the drum, additional conveyor belts for direct delivery of Santuro%u00ae stones after the splitting process, a rubber lining for the drum instead of metal angles, the change from a vibrating table to a roller table, and the integration of an Abus crane for stone formats with a height of 22.5 cm. These measures were supplemented by a Wild extraction system, an Octopus stretch wrapping machine and the conversion of the control system. The large number of these adjustments underlined the central importance of the plant for the production process.Santuro %u2013 a timeless, natural wall system from M%u00fcller-SteinagWith the Santuro wall system, M%u00fcller-Steinag offers a technically sophisticated concrete product with a classic, rustic appearance. Santuro stands for a contemporary, natural aesthetic with a split appearance and broken edges.The reinforced turntable directs the products centrifugally to the outer wall, where they are then transferred to the sorter via a conveyor belt.The bricks are fed into the sorting system in strands and transferred by gripper robots.
