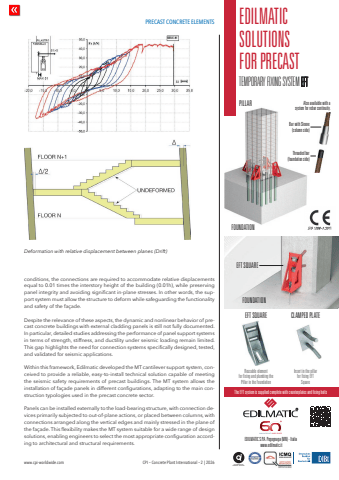

PRECAST CONCRETE ELEMENTSwww.cpi-worldwide.com CPI %u2013 Concrete Plant International %u2013 2 | 2026conditions, the connections are required to accommodate relative displacements equal to 0.01 times the interstory height of the building (0.01h), while preserving panel integrity and avoiding significant in-plane stresses. In other words, the support system must allow the structure to deform while safeguarding the functionality and safety of the fa%u00e7ade.Despite the relevance of these aspects, the dynamic and nonlinear behavior of precast concrete buildings with external cladding panels is still not fully documented. In particular, detailed studies addressing the performance of panel support systems in terms of strength, stiffness, and ductility under seismic loading remain limited. This gap highlights the need for connection systems specifically designed, tested, and validated for seismic applications.Within this framework, Edilmatic developed the MT cantilever support system, conceived to provide a reliable, easy-to-install technical solution capable of meeting the seismic safety requirements of precast buildings. The MT system allows the installation of fa%u00e7ade panels in different configurations, adapting to the main construction typologies used in the precast concrete sector.Panels can be installed externally to the load-bearing structure, with connection devices primarily subjected to out-of-plane actions, or placed between columns, with connections arranged along the vertical edges and mainly stressed in the plane of the fa%u00e7ade. This flexibility makes the MT system suitable for a wide range of design solutions, enabling engineers to select the most appropriate configuration according to architectural and structural requirements.Deformation with relative displacement between planes (Drift)ACCREDITATOINSERTI QUALITA%u2019Reusable element for fixing and plumbing the Pillar in the FoundationInsert in the pillarfor fixing EFTSquareEFT SQUAREEFT SQUAREThe EFT system is supplied complete with counterplates and fixing boltsCLAMPED PLATEPILLAR Also available with a system for rebar continuity.Bar with Sleeve (column side)FOUNDATIONFOUNDATIONe e)Threaded bar (foundation side)EDILMATIC SOLUTIONS FOR PRECASTTEMPORARY FIXING SYSTEM EFTREDILMATIC S.P.A. Pegognaga (MN) - Italia www.edilmatic.it
