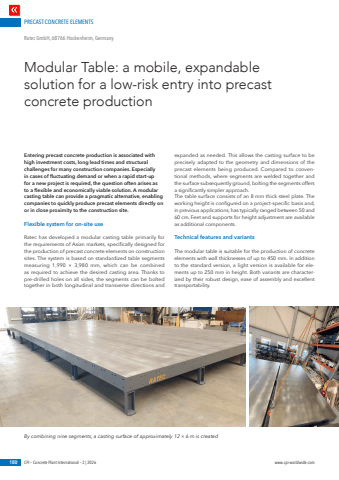

PRECAST CONCRETE ELEMENTS180 CPI %u2013 Concrete Plant International %u2013 2 | 2026 www.cpi-worldwide.comEntering precast concrete production is associated with high investment costs, long lead times and structural challenges for many construction companies. Especially in cases of fluctuating demand or when a rapid start-up for a new project is required, the question often arises as to a flexible and economically viable solution. A modular casting table can provide a pragmatic alternative, enabling companies to quickly produce precast elements directly on or in close proximity to the construction site.Flexible system for on-site useRatec has developed a modular casting table primarily for the requirements of Asian markets, specifically designed for the production of precast concrete elements on construction sites. The system is based on standardized table segments measuring 1,990 %u00d7 3,980 mm, which can be combined as required to achieve the desired casting area. Thanks to pre-drilled holes on all sides, the segments can be bolted together in both longitudinal and transverse directions and expanded as needed. This allows the casting surface to be precisely adapted to the geometry and dimensions of the precast elements being produced. Compared to conventional methods, where segments are welded together and the surface subsequently ground, bolting the segments offers a significantly simpler approach.The table surface consists of an 8 mm thick steel plate. The working height is configured on a project-specific basis and, in previous applications, has typically ranged between 50 and 60 cm. Feet and supports for height adjustment are available as additional components.Technical features and variantsThe modular table is suitable for the production of concrete elements with wall thicknesses of up to 450 mm. In addition to the standard version, a light version is available for elements up to 250 mm in height. Both variants are characterized by their robust design, ease of assembly and excellent transportability.Modular Table: a mobile, expandable solution for a low-risk entry into precast concrete productionRatec GmbH, 68766 Hockenheim, Germany By combining nine segments, a casting surface of approximately 12 %u00d7 6 m is created
