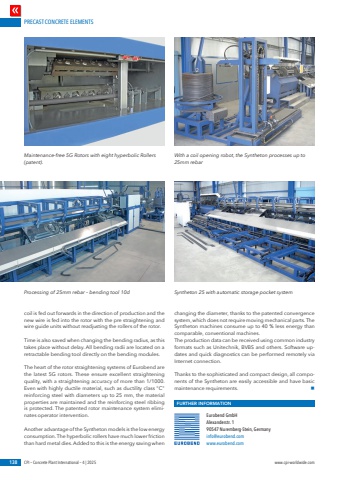

PRECAST CONCRETE ELEMENTS138 CPI %u2013 Concrete Plant International %u2013 4 | 2025 www.cpi-worldwide.comcoil is fed out forwards in the direction of production and the new wire is fed into the rotor with the pre straightening and wire guide units without readjusting the rollers of the rotor. Time is also saved when changing the bending radius, as this takes place without delay. All bending radii are located on a retractable bending tool directly on the bending modules.The heart of the rotor straightening systems of Eurobend are the latest 5G rotors. These ensure excellent straightening quality, with a straightening accuracy of more than 1/1000. Even with highly ductile material, such as ductility class \reinforcing steel with diameters up to 25 mm, the material properties are maintained and the reinforcing steel ribbing is protected. The patented rotor maintenance system eliminates operator intervention. Another advantage of the Syntheton models is the low energy consumption. The hyperbolic rollers have much lower friction than hard metal dies. Added to this is the energy saving when changing the diameter, thanks to the patented convergence system, which does not require moving mechanical parts. The Syntheton machines consume up to 40 % less energy than comparable, conventional machines.The production data can be received using common industry formats such as Unitechnik, BVBS and others. Software updates and quick diagnostics can be performed remotely via Internet connection.Thanks to the sophisticated and compact design, all components of the Syntheton are easily accessible and have basic maintenance requirements. nFURTHER INFORMATIONEurobend GmbHAlexanderstr. 190547 Nuremberg-Stein, Germanyinfo@eurobend.comwww.eurobend.comMaintenance-free 5G Rotors with eight hyperbolic Rollers (patent).With a coil opening robot, the Syntheton processes up to 25mm rebarProcessing of 25mm rebar %u2013 bending tool 10d Syntheton 25 with automatic storage pocket system
