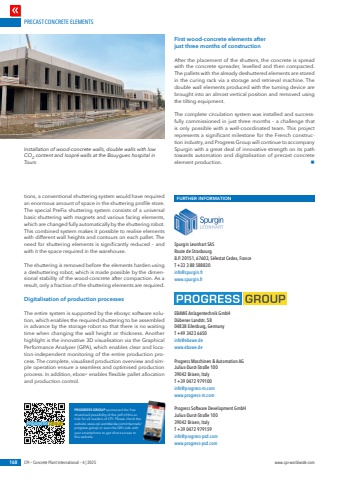

PRECAST CONCRETE ELEMENTS168 CPI %u2013 Concrete Plant International %u2013 4 | 2025 www.cpi-worldwide.comtions, a conventional shuttering system would have required an enormous amount of space in the shuttering profile store.The special PreFix shuttering system consists of a universal basic shuttering with magnets and various facing elements, which are changed fully automatically by the shuttering robot. This combined system makes it possible to realise elements with different wall heights and contours on each pallet. The need for shuttering elements is significantly reduced %u2013 and with it the space required in the warehouse.The shuttering is removed before the elements harden using a deshuttering robot, which is made possible by the dimensional stability of the wood-concrete after compaction. As a result, only a fraction of the shuttering elements are required.Digitalisation of production processesThe entire system is supported by the ebosyc software solution, which enables the required shuttering to be assembled in advance by the storage robot so that there is no waiting time when changing the wall height or thickness. Another highlight is the innovative 3D visualisation via the Graphical Performance Analyzer (GPA), which enables clear and location-independent monitoring of the entire production process. The complete, visualised production overview and simple operation ensure a seamless and optimised production process. In addition, ebosyc enables flexible pallet allocation and production control.First wood-concrete elements after just three months of constructionAfter the placement of the shutters, the concrete is spread with the concrete spreader, levelled and then compacted. The pallets with the already deshuttered elements are stored in the curing rack via a storage and retrieval machine. The double wall elements produced with the turning device are brought into an almost vertical position and removed using the tilting equipment.The complete circulation system was installed and successfully commissioned in just three months %u2013 a challenge that is only possible with a well-coordinated team. This project represents a significant milestone for the French construction industry, and Progress Group will continue to accompany Spurgin with a great deal of innovative strength on its path towards automation and digitalisation of precast concrete element production. nFURTHER INFORMATIONSpurgin Leonhart SASRoute de StrasbourgB.P. 20151, 67603, S%u00e9lestat Cedex, FranceT +33 3 88 588830info@spurgin.frwww.spurgin.frEBAWE Anlagentechnik GmbHD%u00fcbener Landstr. 5804838 Eilenburg, Germany T +49 3423 6650info@ebawe.dewww.ebawe.deProgress Maschinen & Automation AGJulius-Durst-Stra%u00dfe 10039042 Brixen, Italy T +39 0472 979100info@progress-m.comwww.progress-m.comProgress Software Development GmbHJulius-Durst-Stra%u00dfe 10039042 Brixen, ItalyT +39 0472 979159info@progress-psd.comwww.progress-psd.comInstallation of wood-concrete walls, double walls with low CO2 content and Isopr%u00e9 walls at the Bouygues hospital in ToursPROGRESS GROUP sponsored the free download possibility of the pdf of this article for all readers of CPI. Please check the website www.cpi-worldwide.com/channels/progress-group or scan the QR code with your smartphone to get direct access to this website.
