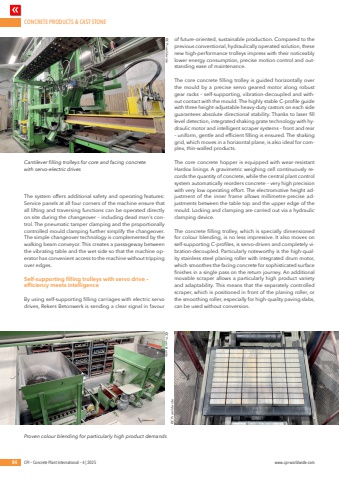

CONCRETE PRODUCTS & CAST STONE84 CPI %u2013 Concrete Plant International %u2013 4 | 2025 www.cpi-worldwide.comThe system offers additional safety and operating features: Service panels at all four corners of the machine ensure that all lifting and traversing functions can be operated directly on site during the changeover %u2013 including dead man's control. The pneumatic tamper clamping and the proportionally controlled mould clamping further simplify the changeover. The simple changeover technology is complemented by the walking beam conveyor. This creates a passageway between the vibrating table and the wet side so that the machine operator has convenient access to the machine without tripping over edges.Self-supporting filling trolleys with servo drive %u2013 efficiency meets intelligenceBy using self-supporting filling carriages with electric servo drives, Rekers Betonwerk is sending a clear signal in favour of future-oriented, sustainable production. Compared to the previous conventional, hydraulically operated solution, these new high-performance trolleys impress with their noticeably lower energy consumption, precise motion control and outstanding ease of maintenance.The core concrete filling trolley is guided horizontally over the mould by a precise servo geared motor along robust gear racks %u2013 self-supporting, vibration-decoupled and without contact with the mould. The highly stable C-profile guide with three height-adjustable heavy-duty castors on each side guarantees absolute directional stability. Thanks to laser fill level detection, integrated shaking grate technology with hydraulic motor and intelligent scraper systems %u2013 front and rear %u2013 uniform, gentle and efficient filling is ensured. The shaking grid, which moves in a horizontal plane, is also ideal for complex, thin-walled products.The core concrete hopper is equipped with wear-resistant Hardox linings. A gravimetric weighing cell continuously records the quantity of concrete, while the central plant control system automatically reorders concrete %u2013 very high precision with very low operating effort. The electromotive height adjustment of the inner frame allows millimetre-precise adjustments between the table top and the upper edge of the mould. Locking and clamping are carried out via a hydraulic clamping device.The concrete filling trolley, which is specially dimensioned for colour blending, is no less impressive. It also moves on self-supporting C-profiles, is servo-driven and completely vibration-decoupled. Particularly noteworthy is the high-quality stainless steel planing roller with integrated drum motor, which smoothes the facing concrete for sophisticated surface finishes in a single pass on the return journey. An additional movable scraper allows a particularly high product variety and adaptability. This means that the separately controlled scraper, which is positioned in front of the planing roller, or the smoothing roller, especially for high-quality paving slabs, can be used without conversion.Cantilever filling trolleys for core and facing concrete with servo-electric drivesProven colour blending for particularly high product demands%u00a9CPi-worldwide %u00a9CPi-worldwide%u00a9CPi-worldwide
