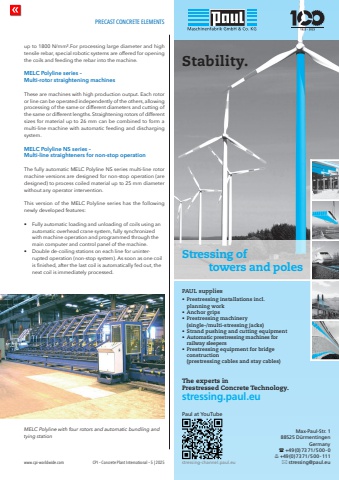

PRECAST CONCRETE ELEMENTSwww.cpi-worldwide.com CPI %u2013 Concrete Plant International %u2013 5 | 2025up to 1800 N/mm%u00b2.For processing large diameter and high tensile rebar, special robotic systems are offered for opening the coils and feeding the rebar into the machine.MELC Polyline series %u2013 Multi-rotor straightening machinesThese are machines with high production output. Each rotor or line can be operated independently of the others, allowing processing of the same or different diameters and cutting of the same or different lengths. Straightening rotors of different sizes for material up to 26 mm can be combined to form a multi-line machine with automatic feeding and discharging system.MELC Polyline NS series %u2013 Multi-line straighteners for non-stop operationThe fully automatic MELC Polyline NS series multi-line rotor machine versions are designed for non-stop operation (are designed) to process coiled material up to 25 mm diameter without any operator intervention.This version of the MELC Polyline series has the following newly developed features:%u2022 Fully automatic loading and unloading of coils using an automatic overhead crane system, fully synchronized with machine operation and programmed through the main computer and control panel of the machine.%u2022 Double de-coiling stations on each line for uninterrupted operation (non-stop system). As soon as one coil is finished, after the last coil is automatically fed out, the next coil is immediately processed.MELC Polyline with four rotors and automatic bundling and tying stationstressing.paul.euMax-Paul-Str. 188525 D%u00fcrmentingenGermany%uf028 +49(0)7371 / 5 00 - 0%uf036 +49(0)7371 / 5 00 - 111%uf02a stressing@paul.euPaul at YouTubestressing-channel.paul.euThe experts in Prestressed Concrete Technology.PAUL supplies%u2022 Prestressing installations incl. planning work%u2022 Anchor grips%u2022 Prestressing machinery(single-/multi-stressing jacks)%u2022 Strand pushing and cutting equipment%u2022 Automatic prestressing machines for railway sleepers%u2022 Prestressing equipment for bridge construction(prestressing cables and stay cables)Stability.Stressing of towers and poles
