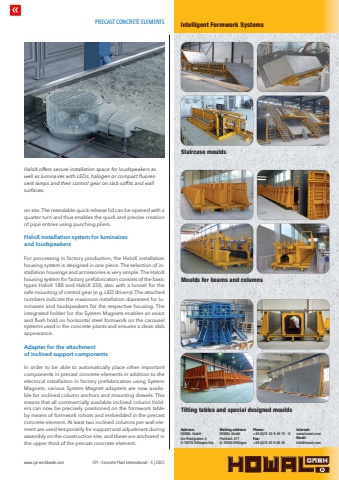

PRECAST CONCRETE ELEMENTSwww.cpi-worldwide.com CPI %u2013 Concrete Plant International %u2013 5 | 2025on site. The resealable quick-release lid can be opened with a quarter turn and thus enables the quick and precise creation of pipe entries using punching pliers.HaloX installation system for luminaires and loudspeakersFor processing in factory production, the HaloX installation housing system is designed in one piece. The selection of installation housings and accessories is very simple. The HaloX housing system for factory prefabrication consists of the basic types HaloX 180 and HaloX 250, also with a tunnel for the safe mounting of control gear (e.g. LED drivers). The attached numbers indicate the maximum installation diameters for luminaires and loudspeakers for the respective housing. The integrated holder for the System Magnets enables an exact and flush hold on horizontal steel formwork on the carousel systems used in the concrete plants and ensures a clean slab appearance.Adapter for the attachment of inclined support componentsIn order to be able to automatically place other important components in precast concrete elements in addition to the electrical installation in factory prefabrication using System Magnets, various System Magnet adapters are now available for inclined column anchors and mounting dowels. This means that all commercially available inclined column holders can now be precisely positioned on the formwork table by means of formwork robots and embedded in the precast concrete element. At least two inclined columns per wall element are used temporarily for support and adjustment during assembly on the construction site, and these are anchored in the upper third of the precast concrete element.HaloX offers secure installation space for loudspeakers as well as luminaires with LEDs, halogen or compact fluorescent lamps and their control gear on slab soffits and wall surfaces. Hausadresse:HOWAL GmbHAm Reutgraben 4D-76275 Ettlingen-Ew.Internet:www.howal.comEmail:info@howal.comPostadresse:HOWAL GmbHPostfach 417D-76258 EttlingenTelefon:+49 (0)72 43-9 49 73 - 0Telefax:+49 (0)72 43-9 06 45Intelligente SchalsystemeSonderschalungenTreppenschalungenSt%u00fctzen- und BinderschalungenAddress:HOWAL GmbHAm Reutgraben 4D-76275 Ettlingen-Ew.Internet:www.howal.comEmail:info@howal.comMailing address:HOWAL GmbHPostfach 417D-76258 EttlingenPhone:+49 (0)72 43-9 49 73 - 0 Fax:+49 (0)72 43-9 06 45Intelligent Formwork SystemsTilting tables and special designed mouldsStaircase mouldsMoulds for beams and columns
