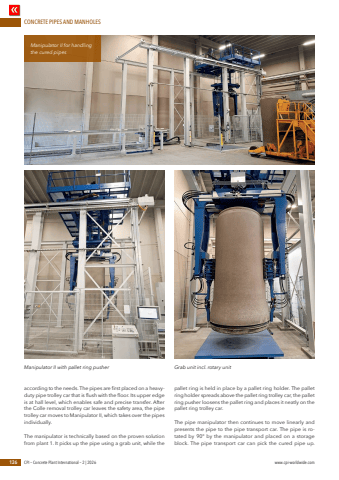

CONCRETE PIPES AND MANHOLES126 CPI %u2013 Concrete Plant International %u2013 2 | 2026 www.cpi-worldwide.comaccording to the needs. The pipes are first placed on a heavyduty pipe trolley car that is flush with the floor. Its upper edge is at hall level, which enables safe and precise transfer. After the Colle removal trolley car leaves the safety area, the pipe trolley car moves to Manipulator II, which takes over the pipes individually.The manipulator is technically based on the proven solution from plant 1. It picks up the pipe using a grab unit, while the pallet ring is held in place by a pallet ring holder. The pallet ring holder spreads above the pallet ring trolley car, the pallet ring pusher loosens the pallet ring and places it neatly on the pallet ring trolley car.The pipe manipulator then continues to move linearly and presents the pipe to the pipe transport car. The pipe is rotated by 90%u00b0 by the manipulator and placed on a storage block. The pipe transport car can pick the cured pipe up. Manipulator II for handling the cured pipesManipulator II with pallet ring pusher Grab unit incl. rotary unit
