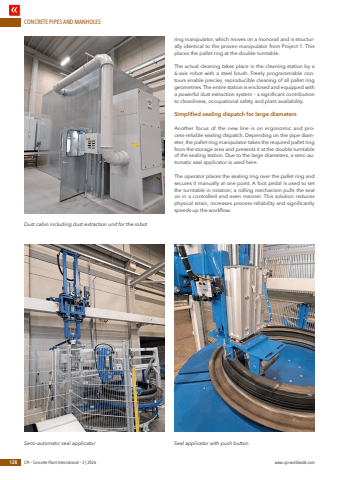

CONCRETE PIPES AND MANHOLES128 CPI %u2013 Concrete Plant International %u2013 2 | 2026 www.cpi-worldwide.comring manipulator, which moves on a monorail and is structurally identical to the proven manipulator from Project 1. This places the pallet ring at the double turntable.The actual cleaning takes place in the cleaning station by a 6-axis robot with a steel brush. Freely programmable contours enable precise, reproducible cleaning of all pallet ring geometries. The entire station is enclosed and equipped with a powerful dust extraction system %u2013 a significant contribution to cleanliness, occupational safety and plant availability. Simplified sealing dispatch for large diametersAnother focus of the new line is on ergonomic and process-reliable sealing dispatch. Depending on the pipe diameter, the pallet ring manipulator takes the required pallet ring from the storage area and presents it at the double turntable of the sealing station. Due to the large diameters, a semi-automatic seal applicator is used here.The operator places the sealing ring over the pallet ring and secures it manually at one point. A foot pedal is used to set the turntable in rotation; a rolling mechanism pulls the seal on in a controlled and even manner. This solution reduces physical strain, increases process reliability and significantly speeds up the workflow.Dust cabin including dust extraction unit for the robotSemi-automatic seal applicator Seal applicator with push button
